2023 Cushman Shuttle 4 ELiTE
$15,871.00
| Engine | |
|---|---|
| Horsepower | 13.1 HP (9.8 kW) Peak |
| Chassis | |
|---|---|
| Front Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
| Rear Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
| Front Tires | 18 x 8.50 – 8 (4 Ply Rated) |
| Rear Tires | 18 x 8.50 – 8 (4 Ply Rated) |
| Frame Type | Welded Steel w/ DuraShield™ Powder Coat |
| Transmission | |
|---|---|
| Top Speed | 14.9 mph ± 0.5 mph (24.0 kph ± 0.8 kph) (High Speed) 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) (Low Speed) |
| General | |
|---|---|
| Passenger Capacity | 4-Person |
| Colors | Standard: Patriot Blue |

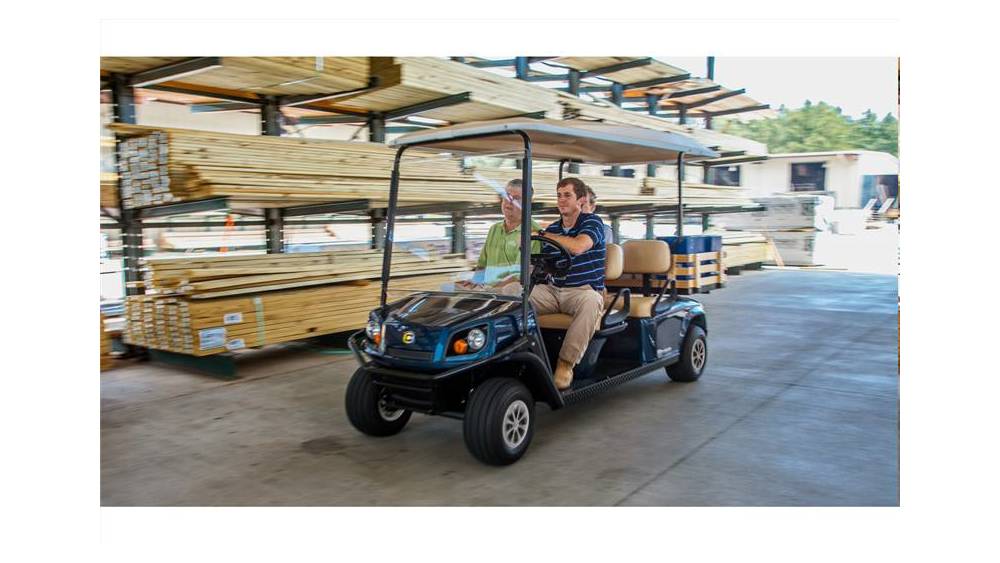

Specifically designed to multi-task, the Shuttle 4 combines four forward-facing seats and a spacious cargo bed, ready to transport people and equipment from every corner of the facility. Available with ELiTE lithium powered by Samsung SDI Technology or a fuel-efficient 13.5 hp EFI gas engine, the Shuttle 4 is essential for day-in and day-out operations.
Features
- 9-CU-Ft Cargo Bed: Safely transport up to 400 lbs. of cargo in the standard bed with wood stake sides.
- Standard Brush Guard And Headlights: Protect the front end of your vehicle with a standard brush guard and increase visibility with standard headlights.
- Automatic Parking Brake: Now standard on ELiTE vehicles, experience superior efficiency with an automatic parking brake. Only offered with electric powertrains.
- Limited Slip Differential: Experience a smoother and safer ride with a limited slip differential (now standard for ELiTE models only), giving you more concentrated traction and peace of mind in any situation.
Body & Chassis
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
- Standard Color: Patriot Blue
Dimensions
- Overall Length: 133.5 in (339 cm)
- Overall Width: 48.5 in (123 cm)
- Overall Height: 48.6 in (123 cm) (w/o Roof) / 72.0 in (183 cm) (w/ Struts & Roof)
- Wheel Base: 93.5 in (237 cm)
- Wheel Track: 34.2 in (87 cm) Front / 38.0 in (97 cm) Rear
- Ground Clearance: 4.3 in (11 cm)
- Cargo Deck Capacity: 9 cu ft (.25 m3)
- Cargo Deck Material: Wood Stake Side
Power
- Power Source: 56V AC
- Horsepower (Kw): 13.1 HP (9.8) kW Peak
- Electrical System: 56 Volt
- Battery (Qty/Type): Three Lithium Ion 56 Volt
- Battery Charger: 56VDC, 120/230 VAC, UL/CSA, CE
- Key Or Pedal Start: Pedal
- Speed Controller: 300 Amp AC
- Drive Train: Motor Shaft Direct Drive
- Transaxle: Limited Slip Differential
- Gear Selection: Dash-Mounted Forward-Neutral-Reverse
- Rear Axle Ratio: 17:01
Performance
- Seating Capacity: 4-Person
- Weight W/O Batteries: 926 lb (420 kg)
- Curb Weight: 1026 lb (484 kg)
- Vehicle Load Capacity: 1200 lb (544 kg)
- Bed Load Capacity: 400 lb (181 kg)
- Outside Clearance Circle: 400 lb (181 kg)
- Speed: 14.9 mph ± 0.5 mph (24.0 kph ± 0.8 kph) (High Speed) 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) (Low Speed)
Steering & Suspension
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Parking Brake: Automatic, Electromagnetic
- Tires: 18 x 8.50 – 8 (4 Ply Rated)
