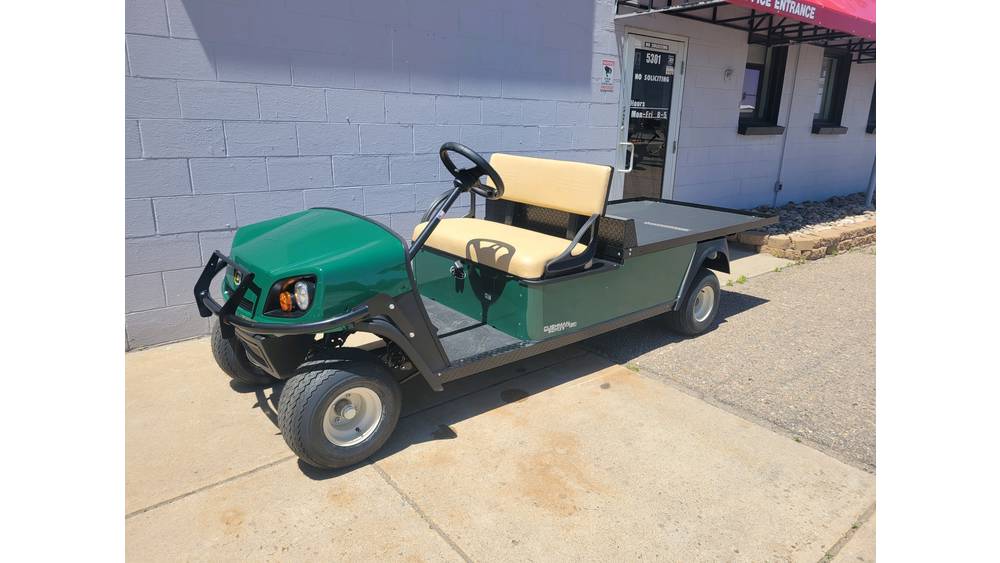

2024 Cushman Shuttle 2 EFI Gas

$12,552.00

Engine
Horsepower	13.5 hp (10.1 kW)
Fuel Capacity	6 Gallon (22.7 L) Tank

Chassis
Front Suspension	Leaf Springs w/ Hydraulic Shock Absorbers
Rear Suspension	Leaf Springs w/ Hydraulic Shock Absorbers
Front Tires	18 x 8.50 – 8 (4 Ply Rated)
Rear Tires	18 x 8.50 – 8 (4 Ply Rated)
Frame Type	Welded Steel with E-Coat & DuraShield™ Powder Coat

Transmission
Top Speed	14 mph ± 0.5 mph (22.5 kph ± 0.8 kph)

General
Passenger Capacity	2-Person
Colors	Standard: Patriot Blue

Category: Golf Carts Tags: 2-seater golf cart, 2024 golf cart, Cushman gas vehicle, Cushman Shuttle 2 EFI, durable utility vehicle, gas-powered golf cart, high-performance golf cart, off-road golf cart, personal transport vehicle, street-legal golf cart

Description
Reviews (0)

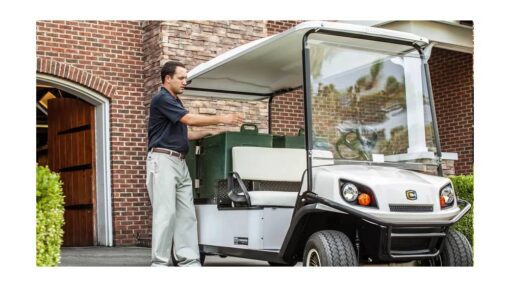

Put your tasks to bed with the Shuttle™ 2.

Efficiently work around your facility with the reliable Shuttle 2, equipped with 20.9-square-foot cargo deck that has the space and capacity to fit all your hospitality needs. Now offered with maintenance-free ELiTE lithium powered by Samsung SDI Technology or a fuel-efficient 13.5 hp EFI gas engine, the Shuttle 2 offers the efficiency and durability to get the job done.

Features

20.9-SQ-FT Cargo Deck: Take on the demands of the day with the expansive cargo deck and optional drop side rails.
Standard Brush Guard And Headlights: Protect the front end of your vehicle with a standard brush guard and increase visibility with standard headlights.
Automatic Parking Brake: Now standard on ELiTE vehicles, experience superior efficiency with an automatic parking brake. Only offered with electric powertrains.
Limited Slip Differential: Experience a smoother and safer ride with a limited slip differential (now standard for ELiTE models only), giving you more concentrated traction and peace of mind in any situation.

Body & Chassis

Frame: Welded Steel w/ DuraShield™ Powder Coat
Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
Standard Color: Patriot Blue

Dimensions

Overall Length: 141.0 in (358 cm)
Overall Width: 48.5 in (123 cm)
Overall Height: 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof)
Wheel Base: 93.5 in (237 cm)
Wheel Track: 34.2 in (87 cm) Front 38.0 in (97 cm) Rear
Ground Clearance: 4.75 in (12 cm)
Cargo Deck Capacity: 20.9-sq-ft (1.94 m2)

Power

Power Source: 4-Cycle, 24.5 ci (401cc)
Valve Train: Single Cylinder OHV
Horsepower (Kw): 13.5 hp (10.1 kW)
Electrical System: Starter/Generator. Solid State Regulator
Battery (Qty/Type): One, 12V Maintenance Free
Key Or Pedal Start: Pedal
Air Cleaner: Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 6 Gallon (22.7 L) Tank
Drive Train: Continuously Variable Transmission (CVT)
Transaxle: Differential w/ Helical Gears
Gear Selection: Forward – Reverse
Rear Axle Ratio: 11.47:1 (Forward) 14.35:1 (Reverse)

Performance

Seating Capacity: 2-Person
Weight W/O Batteries: 926 lb (420 kg)
Vehicle Load Capacity: 1200 lb (544 kg)
Speed: 14 mph +/- 0.5 mph (22.5 kph +/-0.8 kph)

Steering & Suspension

Steering: Self-Compensating Rack & Pinion
Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
Parking Brake: Self-Compensating, Single-Point Engagement
Tires: 18 x 8.5 – 8 (4 Ply Rated)
