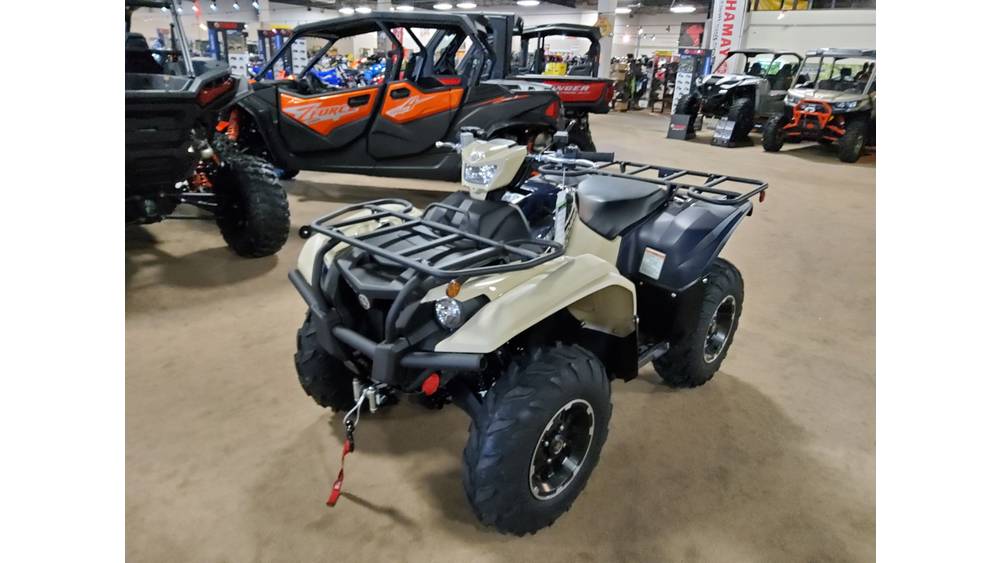

With aluminum wheels to complement painted plastics and eye-catching graphics, this class-leading Special Edition is ready for work or play.
Color Options
- Desert Tan / Midnight Blue: +$0
Pricing
- Warranty (Months): 6
Engine
- Engine Type: Single-Cylinder
- Cylinders: 1
- Cooling: Liquid
- Bore: 102 mm; 4.02 in
- Stroke: 84 mm; 3.31 in
- Displacement: 686 cc; 41.8 ci
- Compression Ratio: 10.0:1
- Starter: Electric
- Fuel Type: Gas
- Top Speed: 14.9 mph Speed controller installed (Limit can be removed or disconnected)
- Emissions Standards: Standard Emissions
- Carburetion Type: Fuel Injected
Transmission
- Transmission Type: Continuously Variable (CVT)
- Reverse: Yes
Drive Line
- Driveline Type: Selectable 4X2 / 4X4
Technical Specifications
- Length: 81.5 in; 2070.1 mm
- Width: 46.5 in; 1181.1 mm
- Height: 48.8 in; 1239.5 mm
- Wheelbase: 49.2 in; 1249.7 mm
- Ground Clearance: 10.8 in; 274.3 mm
- Wet Weight: 714 lbs; 323.9 kg
- Towing Capacity: 1322 lbs; 599.7 kgs
- Fuel Capacity: 4.8 gal; 18.2 l
- Top Speed: 14.9 mph Speed controller installed (Limit can be removed or disconnected)
Exterior
- Frame: Steel
Suspension
- Front Suspension Type: Independent Double Wishbone
- Front Travel: 7.1 in; 180.3 mm
- Rear Suspension Type: Independent Double Wishbone
- Rear Travel: 9.1 in; 231.1 mm
Wheels & Tires
- Front Tire (Full Spec): Maxxis® AT25 x 8 – 12 MU19
- Rear Tire (Full Spec): Maxxis® AT25 x 10 – 12 MU20
Brakes
- Front Brake Type: Dual Hydraulic Disc
- Rear Brake Type: Sealed Oil Bath Multi-Disc
Seats
- Seat Height: 33.9 in; 861.1 mm
- Number Of Seats: 1
Instrumentation
- Speedometer: Standard
- Trip Odometer: Standard
Storage
- Glove Box / Dash Storage: Standard
- Capacity: 110 lbs; 49.9 kgs
- Capacity: 198 lbs; 89.8 kgs
Lights
- Type: Halogen
Convenience
- Heated Hand Grips: Optional
